Switch Mount - Double
We want to ensure the best possible experience and that means getting the right seat for your body and your vehicle. Contact our customer service team to help you dial in your needs.
Phone: 503-395-4087
Email: info@scheel-mann.com
A Permanent Home for Both Switches

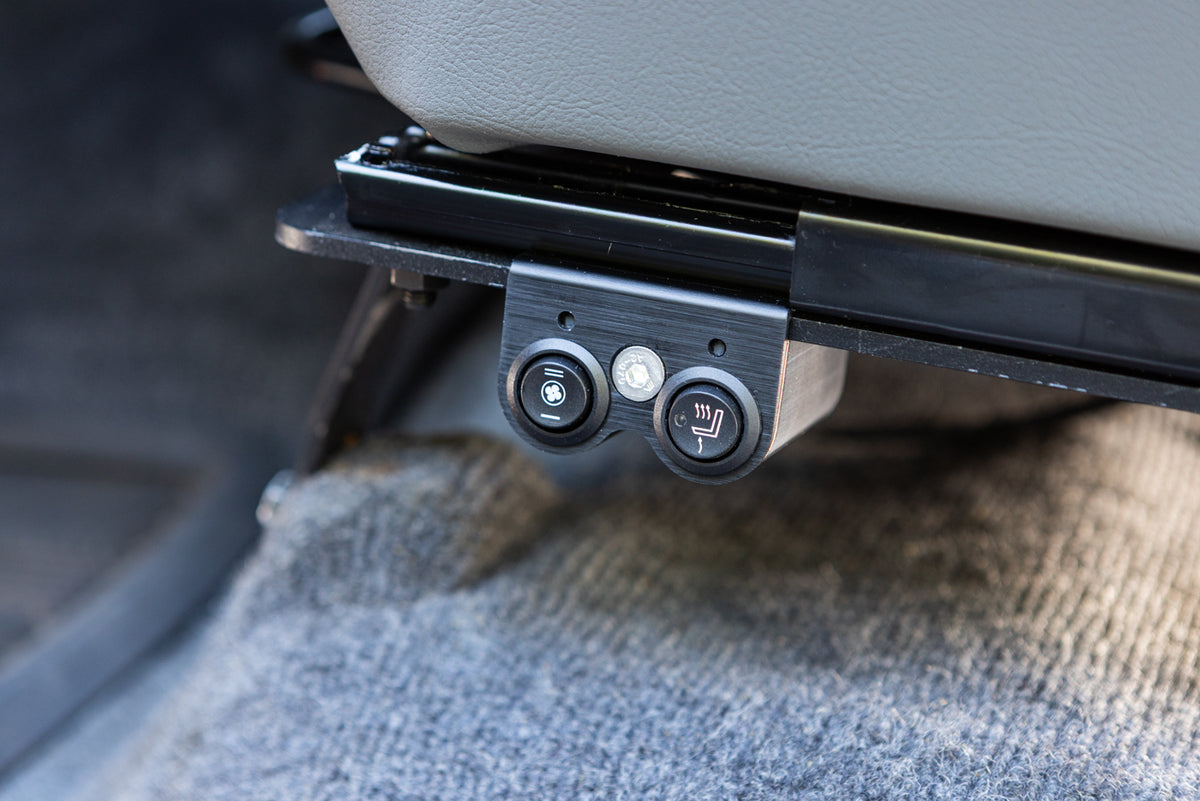

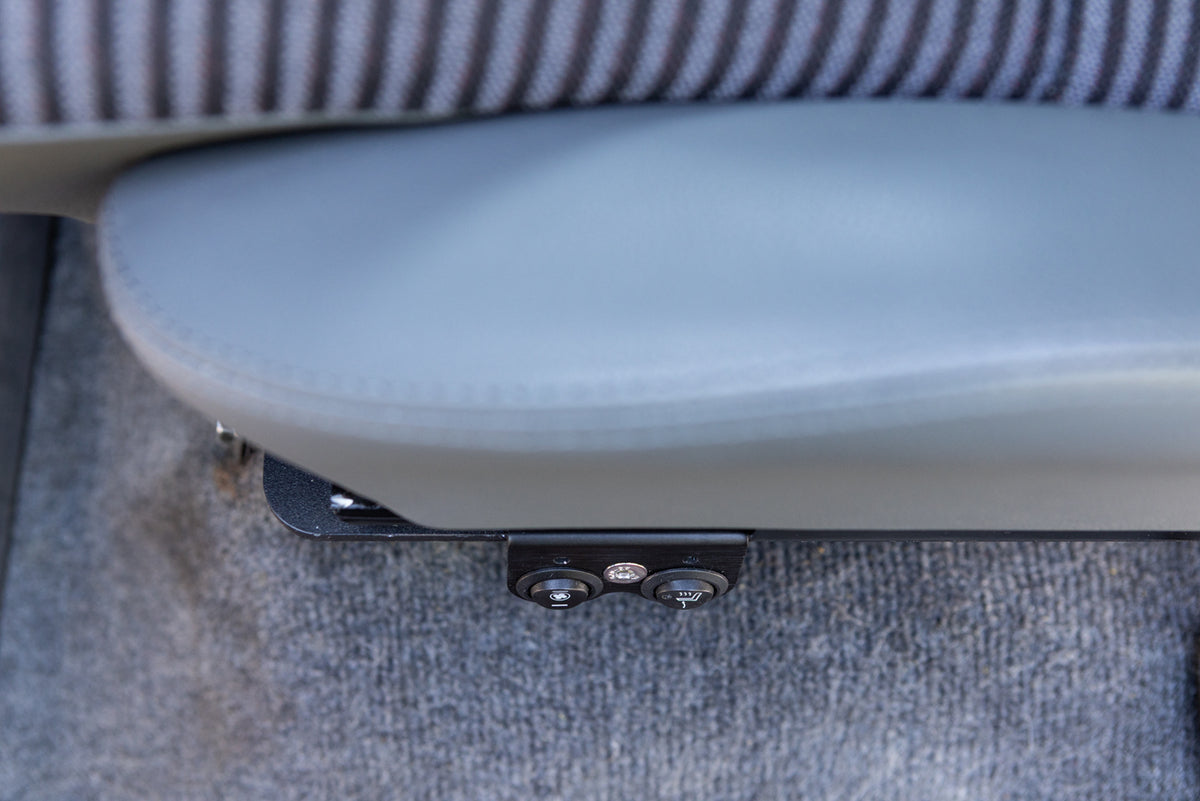

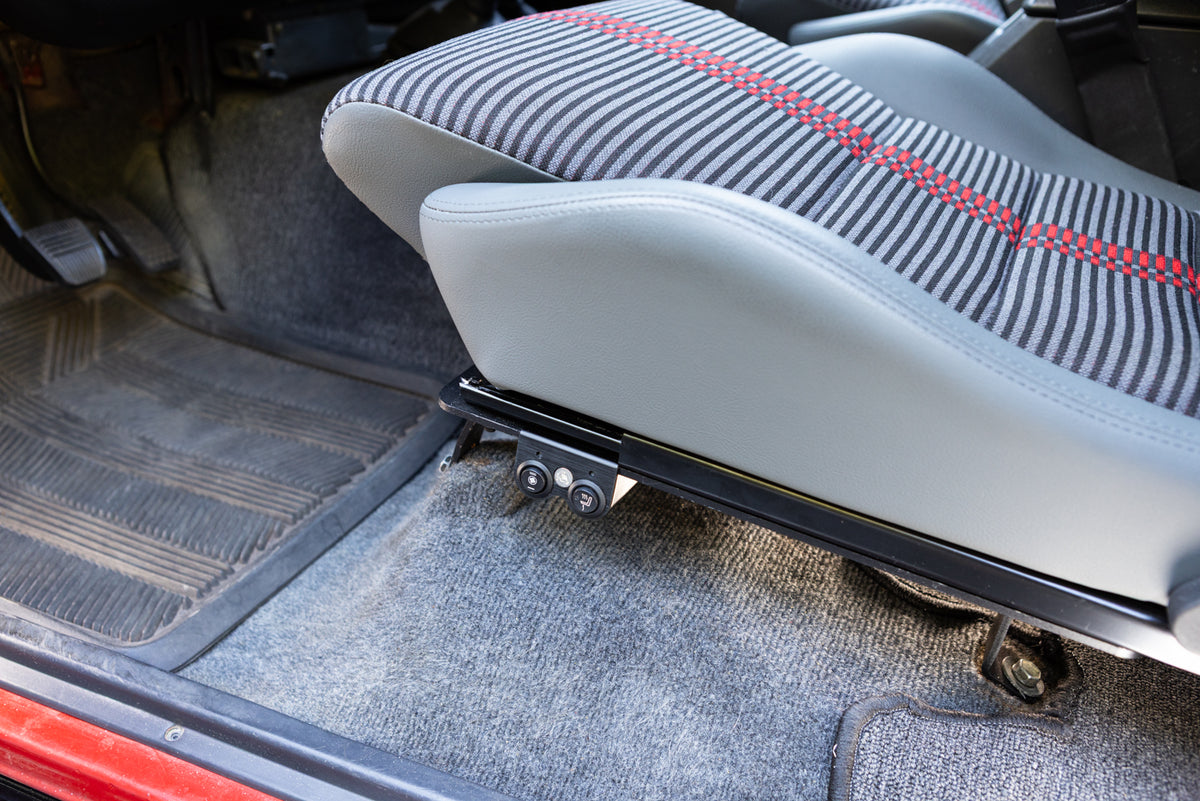

A loose switch is an afterthought, and the Tolerance Stack Switch Mount is built to be the opposite. The Double gives two scheel-mann seat switches a permanent, purpose-built home side by side, the natural fit for a Klima seat, where heat and ventilation each get their own switch and both deserve a mount as considered as the seat itself. Running just one switch instead? The single configuration covers that setup.
It fits most Planted seat brackets, so if your seat is already on a Planted mount, select that option below, no vehicle-specific version required. Running a Toyota 80 Series Land Cruiser? Select that option instead, a version built to that vehicle's own tolerances.

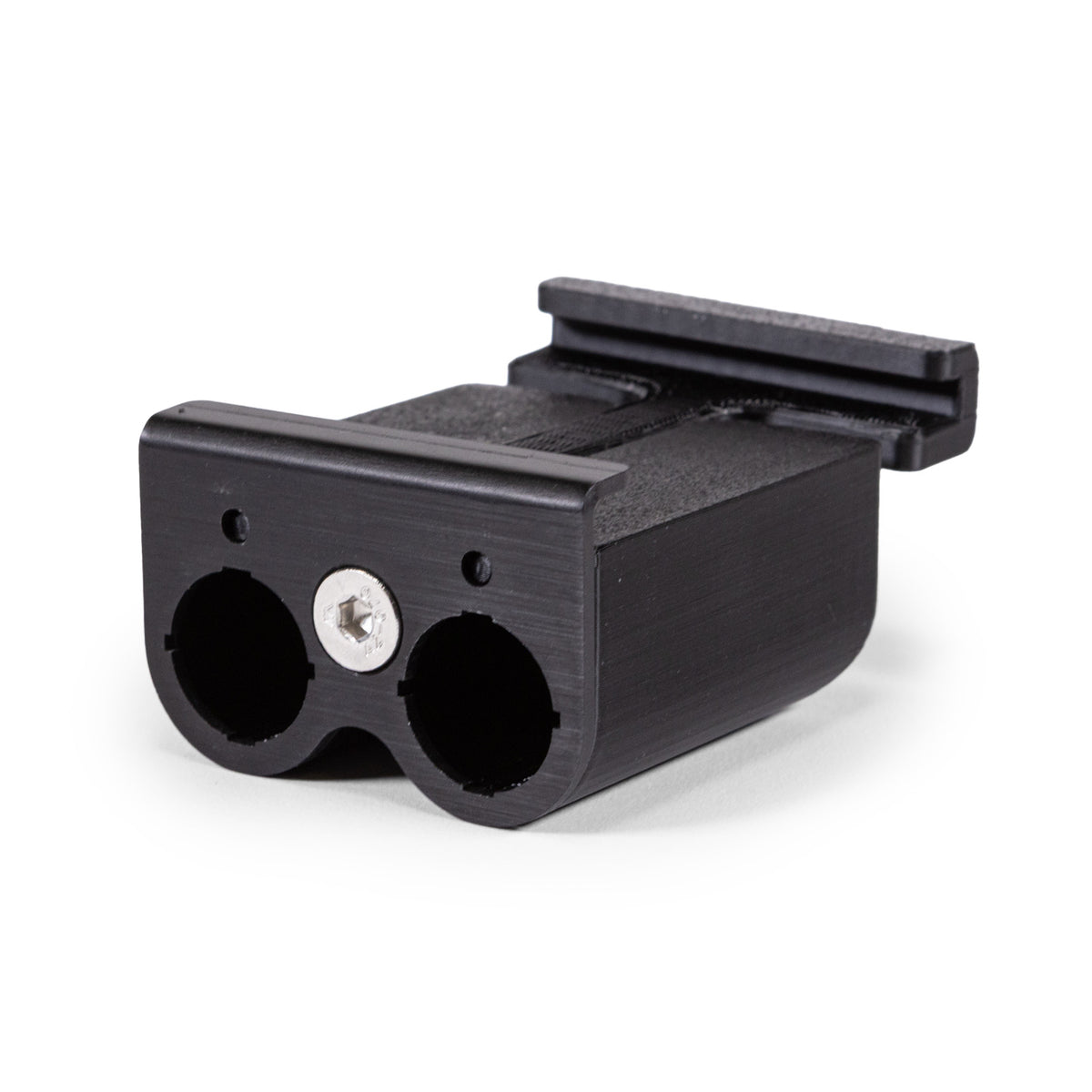

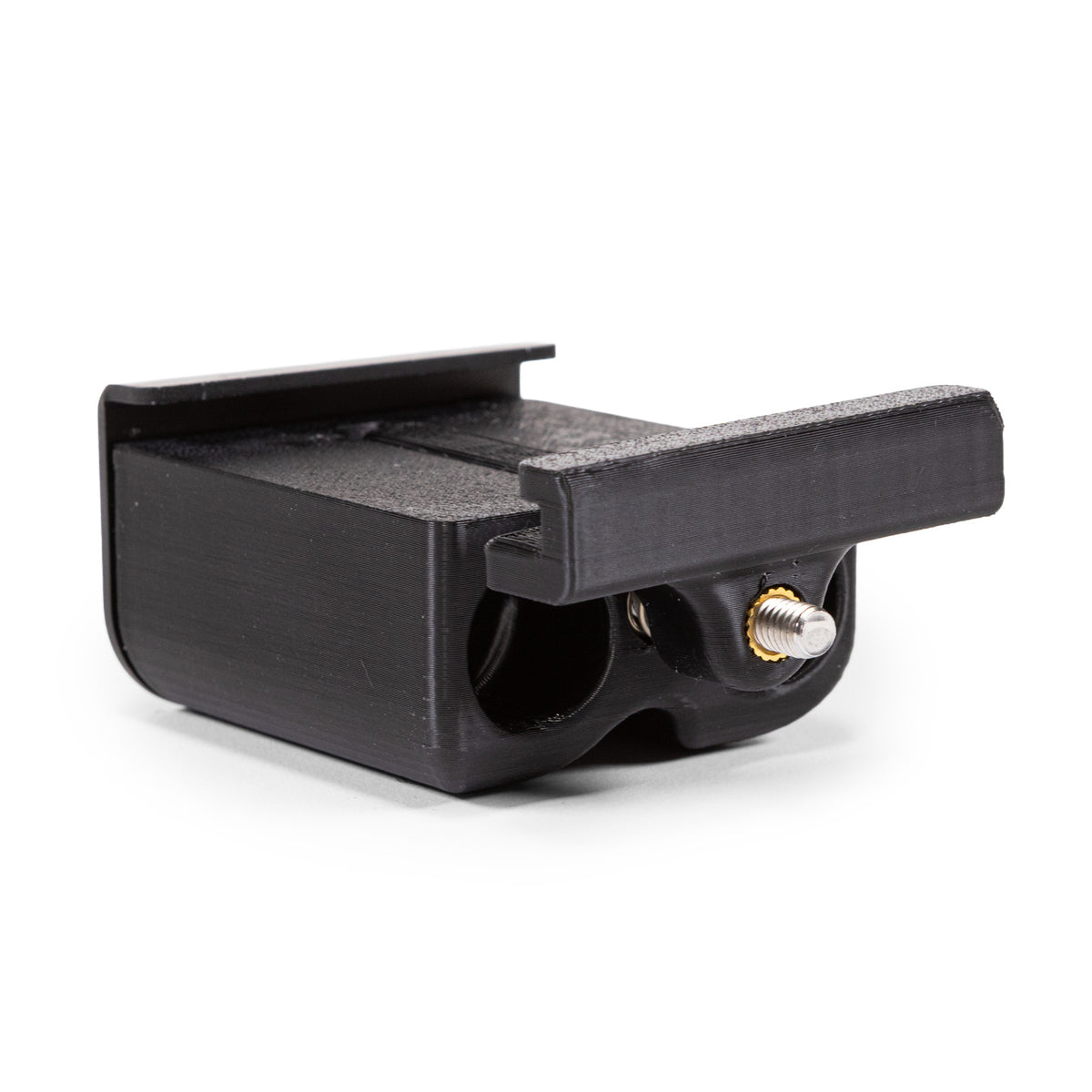

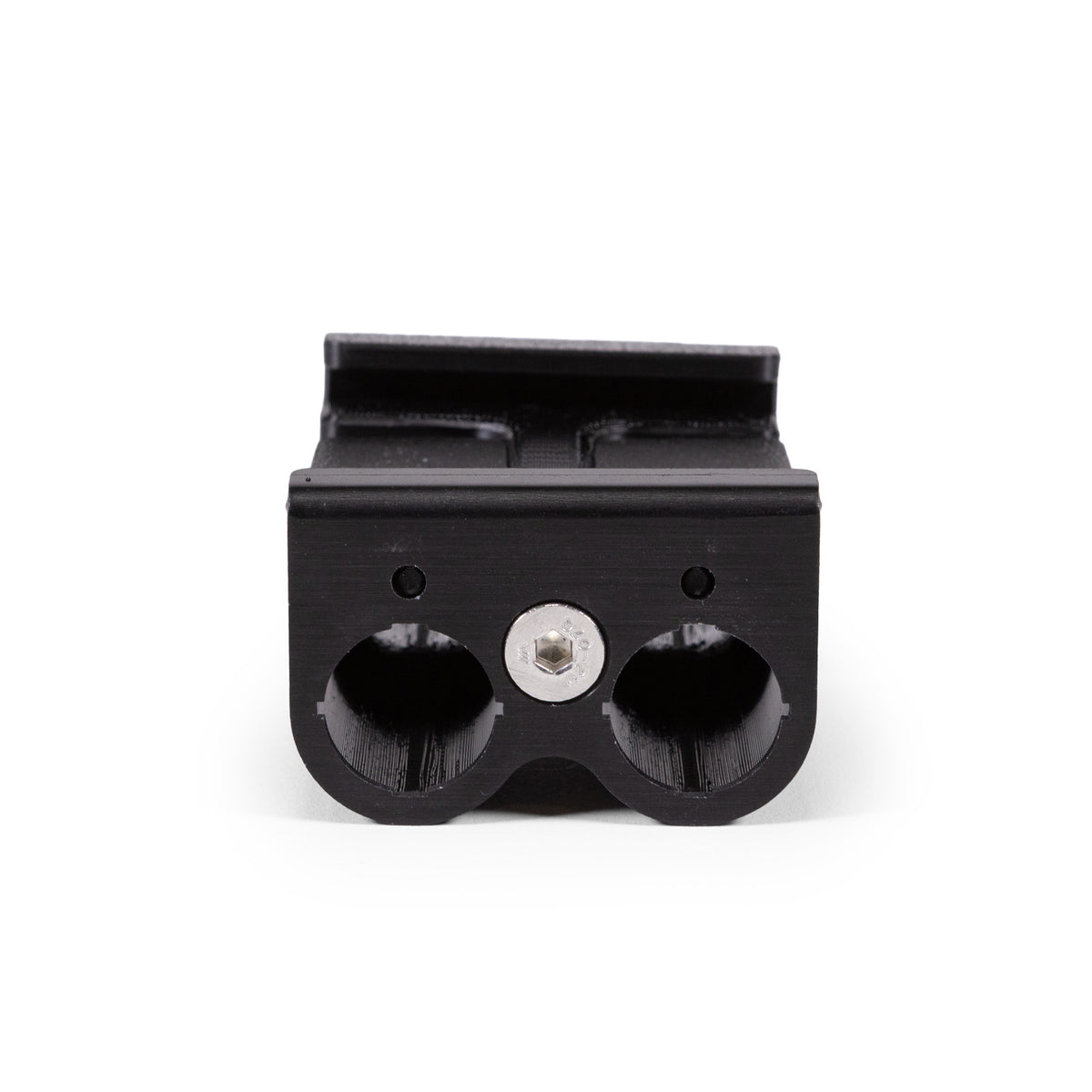

The front face plate is CNC-machined from 6061 aluminum, then tumbled, polished, and anodized for a refined finish built to last. The clamp bodies are machined from a rigid composite for strength and thermal stability, finished in satin black so the mount blends into the seat bracket environment rather than calling attention to itself. A single 90mm M6 stainless steel countersunk screw does the fastening, flush-mounted for a clean, low-profile look that reads as intentional, not an afterthought.
Installation asks nothing of the vehicle: no cutting, drilling, or bracket modification, just a simple clamp-on fit that stays adjustable for placement until the final tightening, built to work on current and future Planted bracket installations alike.
Bracket Fitment
- Most Planted Brackets
- Toyota 80 Series Land Cruiser Planted Seat Brackets
Key Features
- Purpose-built mount with provision for two scheel-mann seat switches
- Ideal for Klima seats, where heat and ventilation each run their own switch
- Fits most Planted seat brackets; select the Toyota 80 Series Land Cruiser option if that's your application
- CNC-machined 6061 aluminum face plate, tumbled, polished, and anodized
- Rigid composite clamp bodies for strength and thermal stability, satin black finish
- Single 90mm M6 stainless steel countersunk screw, flush-mounted
- Clamp-on installation, no cutting, drilling, or bracket modification required
- Compatible with current and future Planted bracket installations
- Includes composite front and rear clamp components, machined anodized aluminum faceplate, and stainless M6 countersunk mounting screw
Finish
- Black Anodized Aluminum
